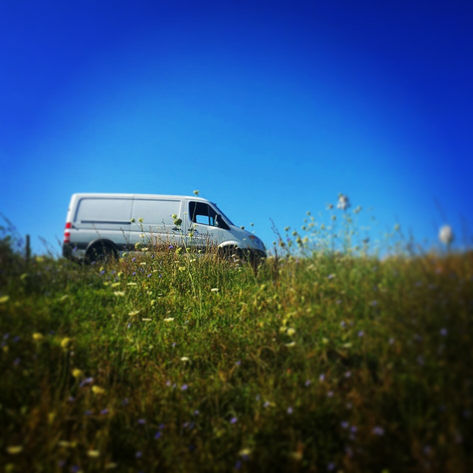

When the jobs get bigger, order up our Van Power 1200 unit. This is the big brother to our 60kW plant. Over twice the power inside but wrapped in the same compact van package on the outside. The 140kW is installed in a 2014 Mercedes built 3500 Low roof Sprinter.
Vehicle Specs
Generator Specs
| Vehicle: |
2014 Merceds Sprinter 3500 |
| Length: |
235.5" (19.625 feet) |
| Wheelbase: |
144.3" (12.025 feet) |
| Height: |
96.3" (8.025 feet) |
| Width: |
79.7" (6.642 feet) |
| GVWR: |
11,030 lbs |
| Color: | White |
| Fuel Type: |
DIESEL |
| Generator: |
Lite Power 140kW |
| Output Configuartions: |
3 phase 120/208v 400 amps per leg |
| Single Phase 120/240v 500 amps per leg |
|
| 3 Phase 277/480v 166 amps per leg |
|
| Electrical Connections: |
3 - rows Female Camlok |
| 3 - 20a Female Edisons |
|
| 1 - Female 100a Bates |
|
| Access: |
Controls and connections at rear door |
| Cable out thru hatch in floor at rear | |
| Noise Level: |
50db(A) @ 50 feet |
| Intake Location: | Under van - **No Rain Mode** |
| Exhaust Location: | Top of Van - Thru manually openned hatch |
| Fuel Type: |
DIESEL |
